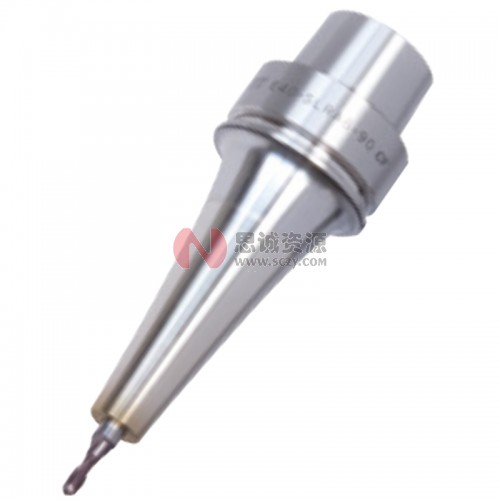

MST恩司迪 E40-SLK6系列 两体式6型热缩刀柄
品牌：MST(恩司迪)
型号：E40-SLK6
￥待询价（提交订单10分钟内获取专属报价单）
| 型号 | φD | φC | t | L | M | L1 | φC1 | φC2 | φD1 | H | h | kg | N | S |
| E40-SLSA3-50-M22 | 3 | 6 | 1.5 | 50 | 22 | 8 | 8.3 | 20 | 4 | 9 | 42 | 0.2 | 0.7 | 4.6 |
| E40-SLSA3-70-M42 | 70 | 42 | 10.4 | 62 | 9.4 | |||||||||
| E40-SLSA3-85-M42 | 85 | 23 | 25 | 69 | 0.3 | 1.1 | 9.3 | |||||||
| E40-SLSA3-110-M67 | 110 | 67 | 13 | 94 | 2.2 | 15.0 | ||||||||
| E40-SLRA3-50-M22 | 7.5 | 2.25 | 50 | 22 | 8 | 9.8 | 20 | 42 | 0.2 | 0.7 | 2.8 | |||
| E40-SLRA3-70-M42 | 70 | 42 | 11.9 | 62 | 5.3 | |||||||||
| E40-SLRA3-85-M42 | 85 | 23 | 25 | 69 | 0.3 | 1.1 | 5.4 | |||||||
| E40-SLRA3-110-M67 | 110 | 67 | 14.5 | 94 | 9.0 | |||||||||
| E40-SLSA3.175-50-M22 | 3.175 | 6.175 | 1.5 | 50 | 22 | 8 | 8.5 | 20 | 4 | 9 | 42 | 0.2 | 0.7 | 4.4 |
| E40-SLSA4-50-M22 | 4 | 7 | 1.5 | 50 | 22 | 8 | 9.3 | 20 | 5 | 12 | 42 | 0.2 | 0.7 | 3.6 |
| E40-SLSA4-70-M42 | 70 | 42 | 11.4 | 62 | 7.2 | |||||||||
| E40-SLSA4-85-M42 | 85 | 23 | 25 | 74 | 0.3 | 1.1 | 7.3 | |||||||
| E40-SLSA4-110-M67 | 110 | 67 | 14 | 99 | 1.2 | 11.9 | ||||||||
| E40-SLRA4-50-M22 | 10 | 3 | 50 | 22 | 8 | 12.3 | 20 | 42 | 0.2 | 0.7 | 1.6 | |||
| E40-SLRA4-70-M42 | 70 | 42 | 14.4 | 62 | 0.3 | 3.0 | ||||||||
| E40-SLRA4-85-M42 | 85 | 23 | 25 | 69 | 1.1 | 3.1 | ||||||||
| E40-SLRA4-110-M67 | 110 | 67 | 17 | 94 | 1.2 | 5.2 | ||||||||
| E40-SLSA6-50-M22 | 6 | 9 | 1.5 | 50 | 22 | 8 | 11.3 | 20 | 6.6 | 18 | 39 | 0.2 | 0.7 | 2.2 |
| E40-SLSA6-70-M42 | 70 | 42 | 13.4 | 7 | 54 | 4.7 | ||||||||
| E40-SLSA6-85-M42 | 85 | 23 | 25 | 69 | 0.3 | 1.1 | 4.9 | |||||||
| E40-SLSA6-110-M67 | 110 | 67 | 16 | 94 | 1.2 | 8.0 | ||||||||
| E40-SLRA6-50-M22 | 12 | 3 | 50 | 22 | 8 | 14.3 | 26 | 6.6 | 39 | 0.2 | 0.7 | 1.2 | ||
| E40-SLRA6-70-M42 | 70 | 42 | 16.4 | 54 | 0.3 | 0.8 | 2.3 | |||||||
| E40-SLRA6-85-M42 | 85 | 23 | 25 | 7 | 69 | 1.2 | 2.5 | |||||||
| E40-SLRA6-110-M67 | 110 | 67 | 19 | 94 | 0.4 | 4.1 | ||||||||
| E40-SLSA8-60-M22 | 8 | 11 | 1.5 | 60 | 22 | 18 | 13.3 | 26 | 8.6 | 24 | 49 | 0.3 | 1.0 | 1.5 |
| E40-SLSA8-80-M42 | 80 | 42 | 15.4 | 64 | 3.3 | |||||||||
| E40-SLSA8-100-M42 | 100 | 38 | 25 | 9 | 84 | 1.5 | 3.8 | |||||||
| E40-SLRA8-50-M22 | 14 | 3 | 50 | 22 | 8 | 16.3 | 26 | 8.6 | 20 | 39 | 0.2 | 0.7 | 0.9 | |
| E40-SLRA8-85-M42 | 85 | 42 | 23 | 18.4 | 25 | 9 | 24 | 69 | 0.3 | 1.2 | 2.1 | |||
| E40-SLRA8-100-M42 | 100 | 38 | 84 | 0.4 | 1.5 | 2.4 | ||||||||
| E40-SLSA10-60-M22 | 10 | 13 | 1.5 | 60 | 22 | 18 | 15.3 | 26 | 10.6 | 30 | 49 | 0.3 | 1.0 | 1.2 |
| E40-SLSA10-80-M42 | 80 | 42 | 17.4 | 64 | 1.1 | 2.4 | ||||||||
| E40-SLSA10-100-M42 | 100 | 38 | 25 | 11 | 89 | 1.5 | 3.1 | |||||||
| E40-SLRA10-55-M22 | 16 | 3 | 55 | 22 | 13 | 18.3 | 26 | 10.6 | 25 | 44 | 0.9 | 0.8 | ||
| E40-SLRA10-85-M42 | 85 | 42 | 23 | 20.4 | 25 | 11 | 30 | 64 | 1.2 | 1.7 | ||||
| E40-SLRA10-100-M42 | 100 | 38 | 0.4 | 1.6 | 2.2 | |||||||||
| E40-SLRA12-55-M22 | 12 | 20 | 4 | 55 | 22 | 13 | 22.3 | 26 | 12.6 | 25 | 44 | 0.3 | 1.0 | 0.6 |
| E40-SLRA12-85-M42 | 85 | 42 | 23 | 24.4 | 32 | 13 | 30 | 74 | 0.4 | 1.6 | 1.1 | |||
| E40-SLRA16-55-M22 | 16 | 26 | 5 | 55 | 22 | 13 | 28.3 | 34 | 16.6 | 32 | 44 | 0.3 | 1.2 | 0.4 |
| E40-SLRA20-60-M40 | 20 | 32 | 6 | 60 | 40 | - | 34 | - | 20.6 | 38 | 49 | 0.4 | 1.6 | 0.4 |
| 型号 | φD | φC | t | L | M | φC1 | φD1 | H | ｈ | Kg | N | S |
| E40-SLSA4-90CV | 4 | 7 | 1.5 | 90 | 70 | 34 | 5 | 12 | 74 | 0.3 | 1.5 | 2.9 |
| E40-SLSA4-120CV | 120 | 100 | 104 | 0.4 | 1.8 | 6.5 | ||||||
| E40-SLSA4-150CV | 150 | 130 | 134 | 0.5 | 2.4 | 8.6 | ||||||
| E40-SLRA4-90CV | 10 | 3 | 90 | 70 | 81 | 0.4 | 1.6 | 2.0 | ||||
| E40-SLRA4-120CV | 120 | 100 | 111 | 1.9 | 4.2 | |||||||
| E40-SLSA6-90CV | 6 | 9 | 1.5 | 90 | 70 | 34 | 7 | 18 | 74 | 0.3 | 1.6 | 2.5 |
| E40-SLSA6-120CV | 120 | 100 | 104 | 0.4 | 1.9 | 5.6 | ||||||
| E40-SLSA6-150CV | 150 | 130 | 134 | 0.5 | 2.5 | 7.7 | ||||||
| E40-SLRA6-90CV | 13 | 3.5 | 90 | 70 | 74 | 0.4 | 1.7 | 1.7 | ||||
| E40-SLRA6-120CV | 120 | 100 | 104 | 0.5 | 2.4 | 2.6 | ||||||
| E40-SLSA8-90CV | 8 | 11 | 1.5 | 90 | 70 | 34 | 9 | 24 | 74 | 0.3 | 1.7 | 2.2 |
| E40-SLSA8-120CV | 120 | 100 | 104 | 0.4 | 2.0 | 3.4 | ||||||
| E40-SLSA8-150CV | 150 | 130 | 134 | 0.5 | 3.0 | 5.1 | ||||||
| E40-SLRA8-90CV | 16 | 4 | 90 | 70 | 74 | 0.4 | 1.8 | 1.6 | ||||
| E40-SLRA8-120CV | 120 | 100 | 104 | 0.5 | 2.5 | 2.4 | ||||||
| E40-SLSA10-90CV | 10 | 13 | 1.5 | 90 | 70 | 34 | 11 | 30 | 74 | 0.3 | 1.7 | 2.0 |
| E40-SLSA10-120CV | 120 | 100 | 104 | 0.4 | 2.4 | 3.2 | ||||||
| E40-SLSA10-150CV | 150 | 130 | 134 | 0.5 | 3.1 | 5.0 | ||||||
| E40-SLRA10-90CV | 19 | 4.5 | 90 | 70 | 74 | 0.4 | 2.1 | 1.1 | ||||
| E40-SLRA10-120CV | 120 | 100 | 104 | 0.5 | 2.9 | 2.0 |
思诚资源为您提供：日本MST热装刀柄E40一体型的采购报价、MST(恩司迪)HSK-E40型号参数、规格图片、PDF画册等资料，如您想了解更多关于MST(恩司迪)正品品牌的其他热装刀柄资料与产品货期库存、行情价格，就在思诚资源MRO商城。
备注：因厂家会在没有任何提前通知的情况下更改产品包装、产地或者一些附件，本公司不能确保客户收到的货物与思诚资源网站提供的产品图片、产地、附件说明等完全一致。若本网站没有及时更新，敬请谅解！
