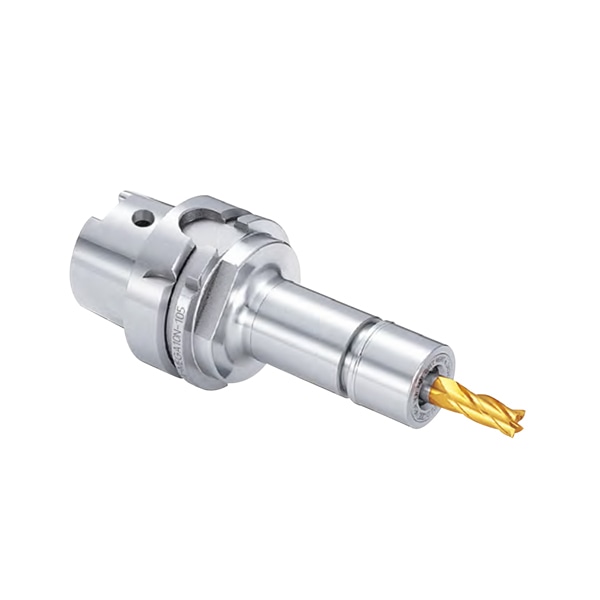

日本BIG超级钻夹头HSK
品牌：BIG(大昭和)
型号：HSK-A63-SKL13-155
￥待询价（提交订单10分钟内获取专属报价单）

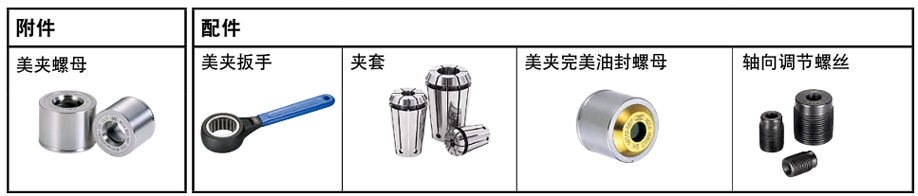

本体、螺母、夹套、及至扳手，都力求全面对应高速。

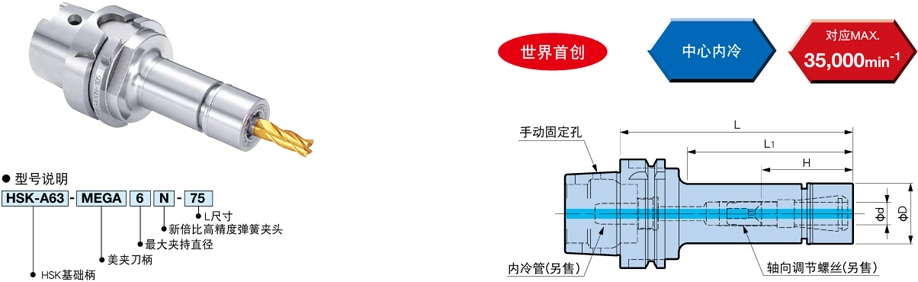

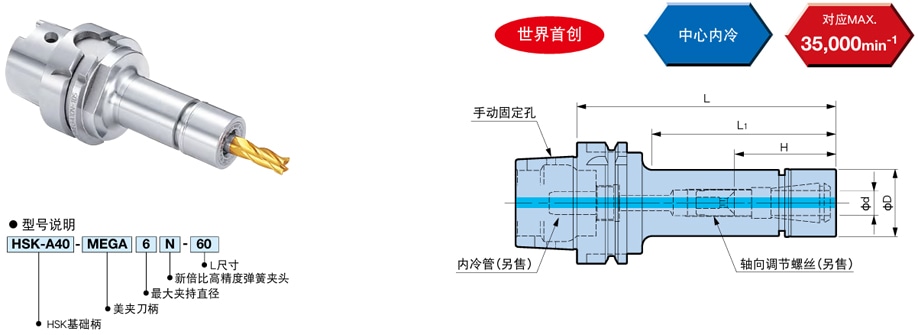

| 型号 | 夹持直径 φd | φD | L | L1 | 刃具调节量 H | 对应夹套 | 质量 （kg） |
| HSK-A40-MEGA6N-60※ | 0.25 ～ 6 | 20 | 60 | 30 | 33 | NBC 6-□ | 0.31 |
| HSK-A40-MEGA6N-75 | 75 | 45 | 23 ～ 38 | 0.34 | |||
| HSK-A40-MEGA6N-90 | 90 | 60 | 23 ～ 43 | 0.37 | |||
| HSK-A40-MEGA8N-60※ | 0.5 ～ 8 | 25 | 60 | 30 | 41 | NBC 8-□ | 0.35 |
| HSK-A40-MEGA8N-90 | 90 | 60 | 26 ～ 44 | 0.44 | |||
| HSK-A40-MEGA10N-60※ | 1.5 ～ 10 | 30 | 60 | 26 | 40 | NBC10-□ | 0.42 |
| HSK-A40-MEGA10N-90 | 90 | 54 | 38 ～ 48 | 0.56 | |||
| HSK-A40-MEGA13N-75※ | 2.5 ～ 13 | 35 | 75 | 55 | 55 | NBC13-□ | 0.55 |
| HSK-A40-MEGA13N-90※ | 90 | 70 | 64 | 0.64 | |||
| HSK-A40-MEGA16N-75※ | 2.5 ～ 16 | 42 | 75 | 55 | 53 | NBC16-□ | 0.65 |
| HSK-A40-MEGA16N-90※ | 90 | 70 | 63 | 0.78 | |||
| HSK-A40-MEGA20N-90※ | 2.5 ～ 20 | 46 | 90 | 70 | 66 | NBC20-□ | 0.86 |
| HSK-A50-MEGA6N-75 | 0.25 ～ 6 | 20 | 75 | 37 | 23 ～ 43 | NBC 6-□ | 0.6 |
| HSK-A50-MEGA6N-100 | 100 | 60 | 0.6 | ||||
| HSK-A50-MEGA6N-135 | 135 | 93 | 0.7 | ||||
| HSK-A50-MEGA8N-75 | 0.5 ～ 8 | 25 | 75 | 37 | 26 ～ 37 | NBC 8-□ | 0.6 |
| HSK-A50-MEGA8N-100 | 100 | 62 | 26 ～ 45 | 0.7 | |||
| HSK-A50-MEGA8N-135 | 135 | 96 | 0.8 | ||||
| HSK-A50-MEGA10N-75※ | 1.5 ～ 10 | 30 | 75 | 38 | 46 | NBC10-□ | 0.7 |
| HSK-A50-MEGA10N-100 | 100 | 63 | 38 ～ 48 | 0.8 | |||
| HSK-A50-MEGA10N-135 | 135 | 98 | 1.0 | ||||
| HSK-A50-MEGA13N-75※ | 2.5 ～ 13 | 35 | 75 | 40 | 46 | NBC13-□ | 0.7 |
| HSK-A50-MEGA13N-100 | 100 | 65 | 44 ～ 56 | 0.9 | |||
| HSK-A50-MEGA13N-135 | 135 | 100 | 44 ～ 63 | 1.1 | |||
| HSK-A50-MEGA16N-75※ | 2.5 ～ 16 | 42 | 75 | 49 | 48 | NBC16-□ | 1.0 |
| HSK-A50-MEGA16N-100 | 100 | 74 | 48 ～ 55 | 1.1 | |||
| HSK-A50-MEGA16N-135 | 135 | 109 | 48 ～ 68 | 1.4 | |||
| HSK-A50-MEGA20N-75※▲ | 2.5 ～ 20 | 46 | 75 | 49 | 47 | NBC20-□ | 0.9 |
| HSK-A50-MEGA20N-100 | 100 | 74 | 51 ～ 54 | 1.3 | |||
| HSK-A50-MEGA20N-135 | 135 | 109 | 51 ～ 68 | 1.8 |
| 型号 | 夹持直径 φd | φD | L | L1 | 刃具调节量 H | 对应夹套 | 质量 （kg） |
| HSK-A63-MEGA6N-75 | 0.25 ～ 6 | 20 | 75 | 35 | 23 ～ 38 | NBC 6-□ | 0.9 |
| HSK-A63-MEGA6N-90 | 90 | 48 | 23 ～ 43 | 0.9 | |||
| HSK-A63-MEGA6N-105 | 105 | 63 | 0.9 | ||||
| HSK-A63-MEGA6N-120 | 120 | 76 | 1.0 | ||||
| HSK-A63-MEGA6N-135 | 135 | 91 | 1.0 | ||||
| HSK-A63-MEGA6N-165 | 165 | 121 | 1.0 | ||||
| HSK-A63-MEGA8N-75 | 0.5 ～ 8 | 25 | 75 | 35 | 26 ～ 38 | NBC 8-□ | 0.9 |
| HSK-A63-MEGA8N-90 | 90 | 50 | 26 ～ 45 | 1.0 | |||
| HSK-A63-MEGA8N-105 | 105 | 63 | 1.0 | ||||
| HSK-A63-MEGA8N-120 | 120 | 76 | 1.1 | ||||
| HSK-A63-MEGA8N-135 | 135 | 91 | 1.1 | ||||
| HSK-A63-MEGA8N-165 | 165 | 121 | 1.2 | ||||
| HSK-A63-MEGA10N-75※ | 1.5 ～ 10 | 30 | 75 | 36 | 50 | NBC10-□ | 1.0 |
| HSK-A63-MEGA10N-90 | 90 | 50 | 38 ～ 45 | 1.0 | |||
| HSK-A63-MEGA10N-105 | 105 | 65 | 38 ～ 48 | 1.1 | |||
| HSK-A63-MEGA10N-120 | 120 | 80 | 1.2 | ||||
| HSK-A63-MEGA10N-135 | 135 | 93 | 1.3 | ||||
| HSK-A63-MEGA10N-165 | 165 | 123 | 1.4 | ||||
| HSK-A63-MEGA13N-75※ | 2.5 ～ 13 | 35 | 75 | 37 | 49 | NBC13-□ | 1.0 |
| HSK-A63-MEGA13N-90※ | 90 | 51 | 64 | 1.1 | |||
| HSK-A63-MEGA13N-105 | 105 | 66 | 44 ～ 56 | 1.2 | |||
| HSK-A63-MEGA13N-120 | 120 | 81 | 44 ～ 63 | 1.3 | |||
| HSK-A63-MEGA13N-135 | 135 | 96 | 1.4 | ||||
| HSK-A63-MEGA13N-165 | 165 | 125 | 1.7 | ||||
| HSK-A63-MEGA16N-75※ | 2.5 ～ 16 | 42 | 75 | 39 | 48 | NBC16-□ | 1.1 |
| HSK-A63-MEGA16N-90※ | 90 | 54 | 63 | 1.3 | |||
| HSK-A63-MEGA16N-105 | 105 | 69 | 48 ～ 54 | 1.4 | |||
| HSK-A63-MEGA16N-120 | 120 | 84 | 48 ～ 68 | 1.5 | |||
| HSK-A63-MEGA16N-135 | 135 | 99 | 1.7 | ||||
| HSK-A63-MEGA16N-165 | 165 | 129 | 2.0 | ||||
| HSK-A63-MEGA16N-200 | 200 | 164 | 2.4 | ||||
| HSK-A63-MEGA20N-75※ | 2.5 ～ 20 | 46 | 75 | 39 | 51 | NBC20-□ | 1.2 |
| HSK-A63-MEGA20N-90※ | 90 | 54 | 61 | 1.4 | |||
| HSK-A63-MEGA20N-105 | 105 | 69 | 51 ～ 54 | 1.5 | |||
| HSK-A63-MEGA20N-120 | 120 | 84 | 51 ～ 68 | 1.7 | |||
| HSK-A63-MEGA20N-135 | 135 | 99 | 1.8 | ||||
| HSK-A63-MEGA20N-165 | 165 | 129 | 2.3 | ||||
| HSK-A63-MEGA20N-200 | 200 | 164 | 2.7 | ||||
| HSK-A100-MEGA6N-90 | 0.25 ～ 6 | 20 | 90 | 43 | 23 ～ 43 | NBC 6-□ | 2.5 |
| HSK-A100-MEGA6N-105 | 105 | 58 | 2.5 | ||||
| HSK-A100-MEGA6N-120 | 120 | 73 | 2.5 | ||||
| HSK-A100-MEGA6N-135 | 135 | 88 | 2.5 | ||||
| HSK-A100-MEGA6N-165 | 165 | 113 | 2.6 | ||||
| HSK-A100-MEGA8N-90 | 0.5 ～ 8 | 25 | 90 | 43 | 26 ～ 45 | NBC 8-□ | 2.5 |
| HSK-A100-MEGA8N-105 | 105 | 58 | 2.6 | ||||
| HSK-A100-MEGA8N-120 | 120 | 73 | 2.6 | ||||
| HSK-A100-MEGA8N-135 | 135 | 88 | 2.7 | ||||
| HSK-A100-MEGA8N-165 | 165 | 113 | 2.7 | ||||
| HSK-A100-MEGA10N-90 | 1.5 ～ 10 | 30 | 90 | 43 | 38 ～ 45 | NBC10-□ | 2.6 |
| HSK-A100-MEGA10N-105 | 105 | 58 | 38 ～ 48 | 2.7 | |||
| HSK-A100-MEGA10N-120 | 120 | 73 | 2.7 | ||||
| HSK-A100-MEGA10N-135 | 135 | 88 | 2.8 | ||||
| HSK-A100-MEGA10N-165 | 165 | 113 | 3.0 | ||||
| HSK-A100-MEGA13N-90※ | 2.5 ～ 13 | 35 | 90 | 43 | 55 | NBC13-□ | 2.7 |
| HSK-A100-MEGA13N-105※ | 105 | 58 | 70 | 2.8 | |||
| HSK-A100-MEGA13N-120 | 120 | 73 | 44 ～ 63 | 2.9 | |||
| HSK-A100-MEGA13N-135 | 135 | 88 | 3.0 | ||||
| HSK-A100-MEGA13N-165 | 165 | 118 | 3.2 | ||||
| HSK-A100-MEGA13N-200 | 200 | 148 | 3.5 | ||||
| HSK-A100-MEGA16N-90※ | 2.5 ～ 16 | 42 | 90 | 47 | 55 | NBC16-□ | 2.8 |
| HSK-A100-MEGA16N-105※ | 105 | 58 | 70 | 2.9 | |||
| HSK-A100-MEGA16N-120 | 120 | 73 | 48 ～ 68 | 3.1 | |||
| HSK-A100-MEGA16N-135 | 135 | 88 | 3.2 | ||||
| HSK-A100-MEGA16N-165 | 165 | 118 | 3.6 | ||||
| HSK-A100-MEGA16N-200 | 200 | 151 | 4.0 | ||||
| HSK-A100-MEGA20N-90※ | 2.5 ～ 20 | 46 | 90 | 47 | 55 | NBC20-□ | 2.9 |
| HSK-A100-MEGA20N-105※ | 105 | 58 | 70 | 3.0 | |||
| HSK-A100-MEGA20N-120 | 120 | 73 | 51 ～ 68 | 3.2 | |||
| HSK-A100-MEGA20N-135 | 135 | 88 | 3.3 | ||||
| HSK-A100-MEGA20N-165 | 165 | 118 | 3.8 | ||||
| HSK-A100-MEGA20N-200 | 200 | 153 | 4.3 |
2.质量包含螺母，不含夹套。
3.有内冷孔，可以使用中心内冷。
4.刀具调节量H是使用轴向调节螺丝时的调整量。
5.带※的型号不能使用轴向调节螺丝。H的尺寸为最大刃具插入量。
6.请注意：使用时的转速受机床刚性和刃具平衡性的影响较大。因此，请将机床转速从低速开始，缓慢调整至合适的转速。
7.不附带内冷管。
