一、MST抗震刀柄简介
MST抗震刀柄采用热装技术内置硬质合金杆，有效抵抗加工震动。

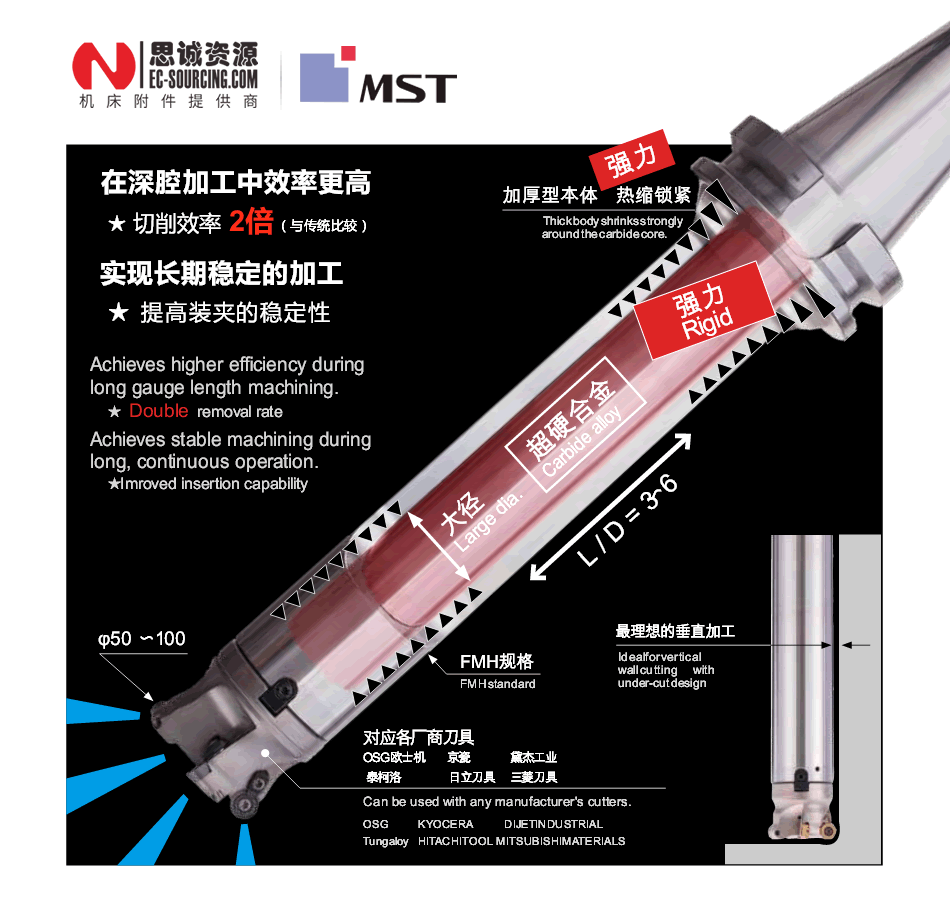

二、MST抗震刀柄特点
在深腔加工中效率更高
★切削效率2倍(与传统比较)
实现长期稳定的加工
★提高装夹的稳定性
Achieves higher efficiency during long gauge length machining.
★ Double removal rate Achieves stable machining during long, continuous operation.
★Imroved insertion capability.
三、MST抗震刀柄结构

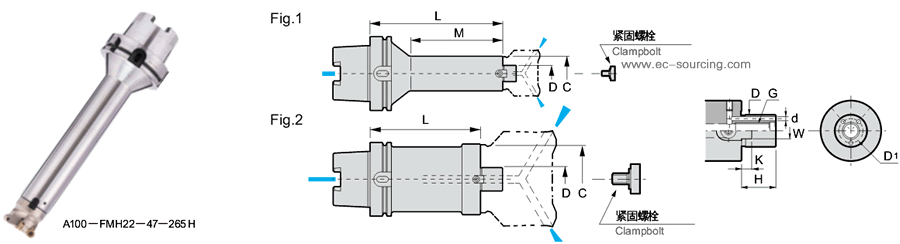

四、MST抗震刀柄参数
| 编码 | Fig. | 刀具直径 Cutter da. | ΦD | L | M | ΦC | H | W | K | ΦD1 | Φd | G | KG | 紧固螺栓 Clamp bolt | 推荐紧固力矩 Moment kgf • m |
| BT50-FMH22 -47-215 H | 1 | 50/52 | 22 | 215 | 160 | 47 | 18 | 10 | 5 | 16 | 3 | M10 | 6.5 | M10※ | 0.2 |
| -265 H | 265 | 210 | 7.3 | 0.3 | |||||||||||
| 一 315H | 315 | 260 | 8.2 | 0.6 | |||||||||||
| -60-215H | 63/66 | 215 | 160 | 60 | 8.1 | 0.3 | |||||||||
| -265 H | 265 | 210 | 9.3 | 0.6 | |||||||||||
| -315H | 315 | 260 | 10.7 | 1.0 | |||||||||||
| -FMH31.75-76-215 H | 80 | 31-75 | 215 | 160 | 76 | 30 | 12.7 | 7 | 16 | 4 | M16 | 10.6 | MBF-M16 | 0.6 | |
| -265 H | 265 | 210 | 12.7 | 1.0 | |||||||||||
| -315H | 315 | 260 | 15.3 | 1.5 | |||||||||||
| -365 H | 365 | 310 | 17.6 | 2.3 | |||||||||||
| A100-FMH22 -47-215 H | 1 | 50/52 | 22 | 215 | 160 | 47 | 18 | 10 | 5 | 16 | 3 | M10 | 5.1 | M1※ | 0.3 |
| -265 H | 265 | 210 | 5.9 | ||||||||||||
| -315H | 315 | 260 | 6.8 | 0.6 | |||||||||||
| -60-215 H | 63/66 | 215 | 160 | 60 | 7.2 | 0.5 | |||||||||
| -265 H | 265 | 210 | 8.4 | 0.7 | |||||||||||
| -315H | 315 | 260 | 9.8 | 1.1 | |||||||||||
| -FMH31.75-76-215 H |
| 80 | 31-75 | 215 | 160 | 76 | 30 | 12.7 | 7 | 16 | 4 | M16 | 9.7 | MBF-M16 | 0.7 |
| -265 H |
|
|
| 265 | 210 |
|
|
|
|
|
|
| 11.8 |
| 1.2 |
| -315H |
|
|
| 315 | 260 |
|
|
|
|
|
|
| 14.0 |
| 1.7 |
| -365 H |
|
|
| 365 | 310 |
|
|
|
|
|
|
| 16.3 |
| 2.4 |
| 一96—250 H | 2 | 100 |
| 250 | — | 96 |
|
|
|
|
|
| 13.6 |
| 1.3 |
| -300 H |
|
|
| 300 |
|
|
|
|
|
|
|
| 16.3 |
| 2.0 |
| -350 H |
|
|
| 350 |
|
|
|
|
|
|
|
| 17.4 |
| 2.6 |
选购品•拉钉（BT )
■标准附属品：冷却液导管(HSK-A) •紧固螺栓（但除了表中带※记号）
■备考：表中记号为六角紧固螺栓。（请使用市售六角板手拧紧）
*可换式螺纹刀具为另购品，请向各刀具厂商垂询购买。
■注意事项：紧固螺栓形状根据刀盘型号和制造商而不同，有无法安装附属紧固螺栓的可能 。

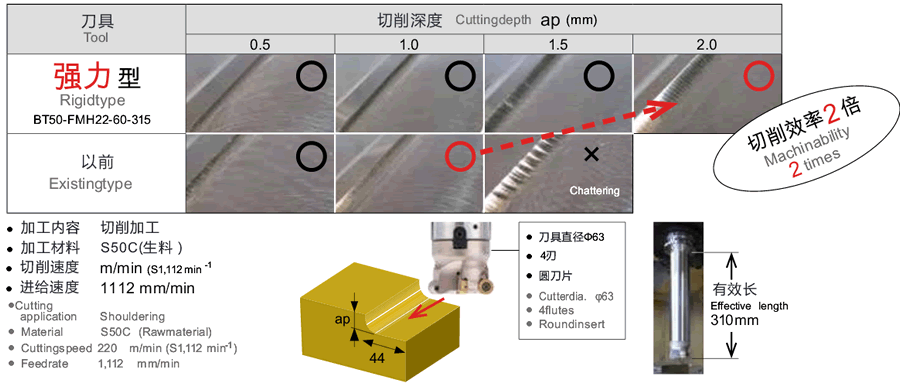

五、MST抗震FMH强力型切削测试
